Non Destructive Testing // Magnetic Particles
- A 360° valve that enables an aerosol to be sprayed upside down
- Every aerosol contains a comfort nozzle for your pleasure
- Low background colour for assured indication visibility
- Particles are easily agitated, fast acting and produce defined indications
- Aerosols offer convenience and improve reliability
- Water dispersion is non-flammable
Description

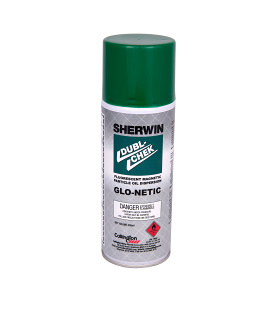

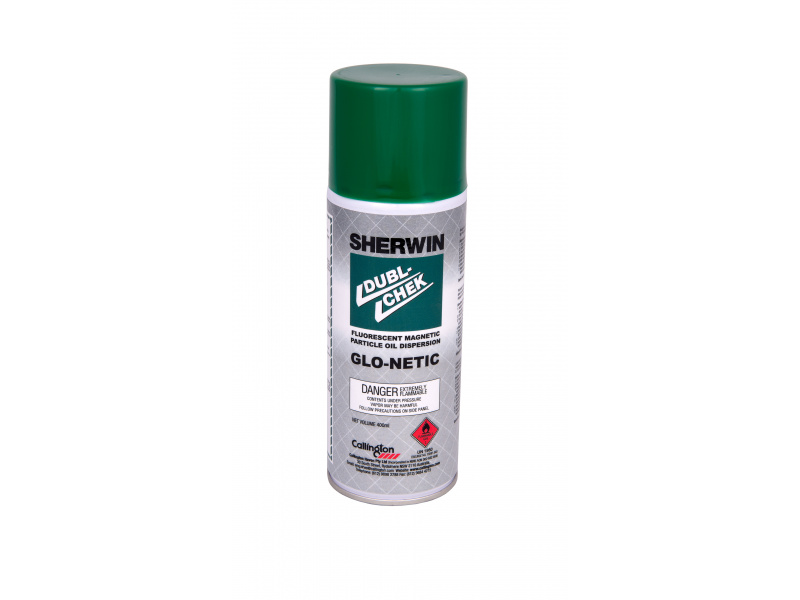

DUBL-CHEK GLO-NETIC is GW-1 fluorescent magnetic oxide suspended in a highly refined light petroleum oil. The suspension responds to magnetic leakage fields created by discontinuities in ferromagnetic material. Particles rapidly collect at leakage fields producing fluorescent indications under ultraviolet light.
Specifications Compliance
• MIL-STD-1949
• MIL-STD-271(SH)
• NAVSEA 2501-1500-1
• ASTM E 709
• ASTM B & PV Code - Section V
• ASTM E1444
• ASTM E3024
• ISO 9934
• AMS 3044
• AMS 3045
• AMS 3161
• AMS 2641
• DOD-F-87935
• NATO Number: 6850-00-841-1347
• NTR-1E
Physical Properties
| Colour: | Brown |
| Fluorescent: | Yellow/Green |
| Suspension Fluid: | Clear highly refined light petroleum oil or water |
| Flash Point: | >95°C (>200°F) |
Directions
1. Clean the test surface and allow it to dry.
2. Ensure continuous agitation of the suspension. If using an aerosol, shake vigorously before and during inspection.
3. Magnetise the area to be inspected.
4. Apply the suspension to the test part at a distance of approximately 150mm from the surface.
5. Allow the excess oil/water to run off the inspection area.
6. Inspect the surface under ultraviolet light.
7. Collections of GW-1 particles will reveal discontinuities at the leakage fields.
8. Clean and repeat the process, changing the orientation of the magnetising direction.
Ordering Info
| Code | Packaging |
|---|---|
| 1530/400 | 400ml (Aerosol) |
| 1530/42 | 3.8 litres (1 gallon) |
| 1530/51 | 18.9 litres (5 gallons) |
| 1530/64 | 208 litres (55 gallons) |
