Non Destructive Testing // Equipment & Accessories

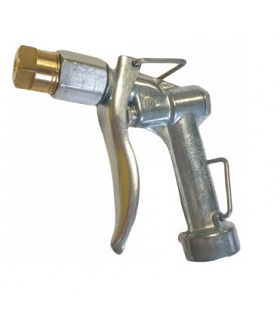

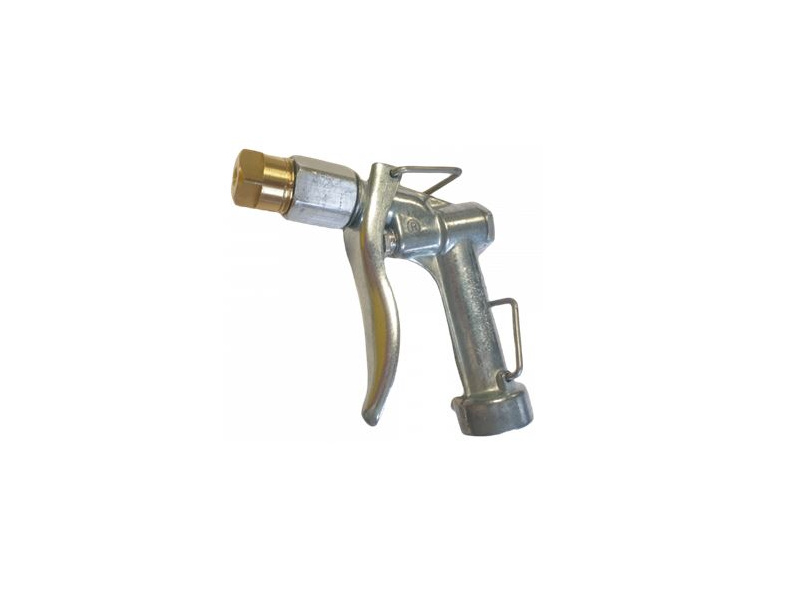

Tri-Con Wash Gun

Water spray wash gun

Meets ASTM E-1417 requirements for low pressure
Bottom latch locks trigger for continuous spray
Connects to any standard garden hose
Engineered to withstand hard daily use
Nozzle body is threaded to accept all Tri-con sprayer nozzles and accessories

Technical Data Sheet

Description

A sturdy water spray wash gun meeting MIL-I-6866 and ASTM E 1417 requirements. The Tri-Con gun is available with or without the full jet nozzle that emits coarse spray without air pressure.

Tri-Con nozzles are recommended for penetrant wash stations. The model C125N 1/2HH 25 has been recognised by Boeing and the U.S. military, as the best wash gun/nozzle to use for the removal of excess penetrant before the inspection. These nozzles are certified to provide a full cone spray pattern of uniform distribution at 18L per minute at 40 p.s.i.

Meets ASTM E 1417 requirements producing a coarse spray for low-pressure rinsing of penetrate material from parts specified for use on aircraft parts.

SPECIFICATIONS

Dimensions:	115mm (Barrel) x 110mm (Grip) x 40mm
Weight:	0.4Kg
Water connection 3/4" BSB

Ordering Info

Code	Packaging
WG-1	Tri-Con Spray Wash Gun (includes gun, adaptor & nozzle)
WG-0	Wash Gun Only (no nozzle with adaptor)
WG-N	Nozzle Only
WG-A	Wash Gun Adaptor
WG-R	Washer Repair Kit
